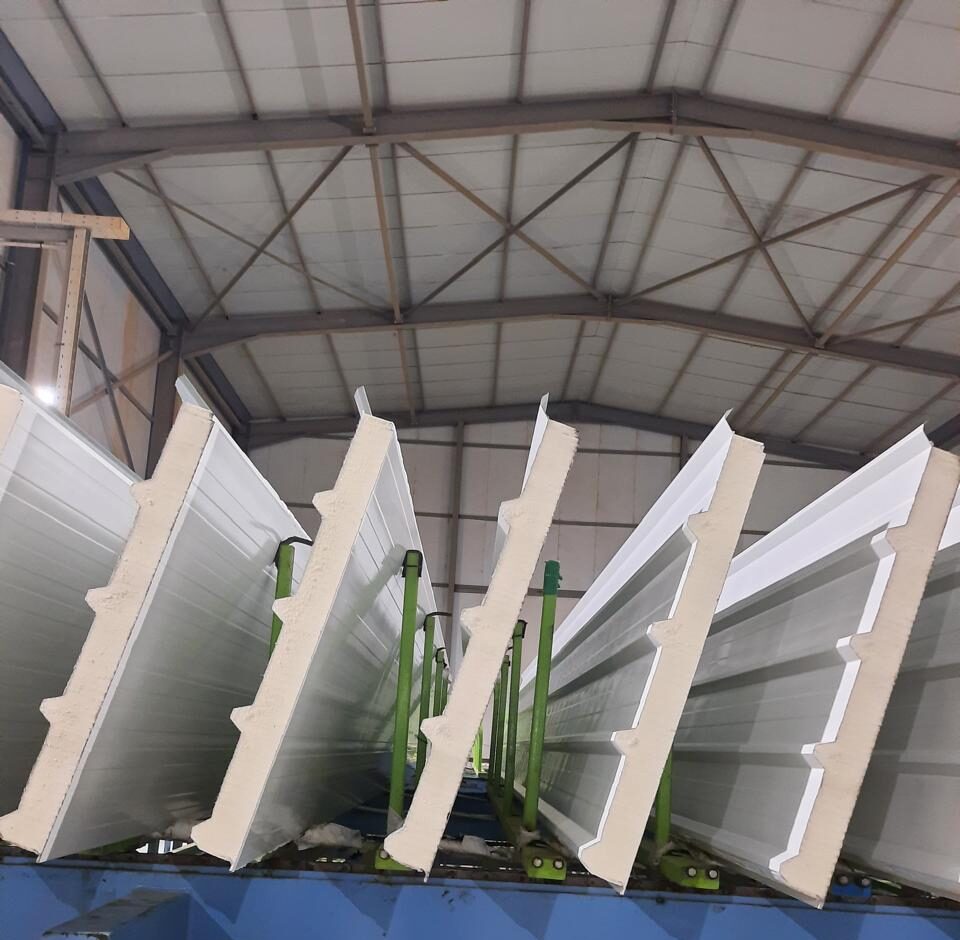

PIR & PUR Systems for Sandwich Panel Manufacturing
PIR & PUR systems for high-performance sandwich panels offering superior thermal insulation, fire resistance, and structural strength for construction and cold storage applications.
Additional Information
PIR & PUR Systems for Sandwich Panel Manufacturing - Advanced Insulation Solutions
Polyurethane-based insulation materials—PUR (Polyurethane) and PIR (Polyisocyanurate)—are the most widely used systems for producing high-performance sandwich panels in construction, cold storage, industrial buildings, and HVAC applications.
Both systems rely on MDI Isocyanate + Polyol blends, but they differ in reaction structure, fire performance, and thermal stability.
System Components & Architecture
🏗️ Face Sheet Materials
- Galvanized Steel: Superior corrosion resistance and structural strength
- Aluminum: Lightweight with excellent weather resistance
- Other Substrates: Stainless steel, fiber cement, and specialty coatings
- Surface Finishes: Various colors, textures, and protective coatings available
🌡️ Core Insulation Materials
- PIR Foam: Enhanced fire performance and thermal efficiency
- PUR Foam: Cost-effective insulation with excellent mechanical properties
- Density Options: Various densities for different load requirements
- Custom Formulations: Tailored for specific applications and performance needs
🔗 Adhesive Bonding Systems
- High-Strength Adhesives: Ensures permanent face sheet to core bonding
- Thermal Compatibility: Maintains bond integrity under temperature variations
- Rapid Curing: Supports continuous production line efficiency
- Environmental Resistance: Withstands moisture, UV, and chemical exposure
PIR vs. PUR: Technical Comparison
🔥 PIR (Polyisocyanurate) - Premium Performance
- Thermal Conductivity: 0.020-0.024 W/m·K (superior insulation efficiency)
- Fire Resistance: Excellent reaction to fire performance, low smoke development
- Temperature Stability: Maintains performance from -180°C to +140°C
- Applications: High-specification buildings, cold storage, fire-critical areas
💼 PUR (Polyurethane) - Cost-Effective Solution
- Thermal Conductivity: 0.022-0.028 W/m·K (excellent insulation value)
- Mechanical Strength: Superior compressive strength and dimensional stability
- Cost Efficiency: More economical while maintaining high performance
- Applications: General construction, industrial buildings, warehouses
Manufacturing Process Overview
📐 Sheet Preparation & Treatment
Face sheets are precision-cut, formed, and surface-treated to ensure optimal bonding and long-term durability. Advanced coating systems provide corrosion protection and aesthetic appeal.
⚙️ Continuous Foaming Process
PIR or PUR chemical components are precisely metered, mixed, and dispensed between face sheets in a continuous production line, where they expand and cure to form the insulation core.
🔗 Precision Bonding & Curing
Controlled pressure and temperature conditions ensure perfect adhesion between core and face sheets, creating a monolithic composite structure with exceptional mechanical properties.
✂️ Cutting & Quality Control
Panels are precision-cut to required dimensions, with rigorous quality checks for insulation performance, dimensional accuracy, and surface quality before packaging and shipment.
Key Performance Benefits
- Exceptional Thermal Efficiency: Significantly reduces heating and cooling costs with industry-leading R-values
- Superior Fire Performance: PIR systems offer enhanced fire resistance with low flame spread and smoke toxicity
- Structural Integrity: High strength-to-weight ratio supports significant loads while reducing structural framework requirements
- Acoustic Performance: Effective sound absorption creates quieter indoor environments
- Rapid Installation: Large panel sizes and integrated joining systems reduce construction time
- Long-Term Durability: Resistant to moisture, pests, and environmental degradation
Application Areas
🏢 Commercial & Industrial Construction
- Warehouse and factory buildings
- Office buildings and retail centers
- Sports facilities and entertainment venues
- Agricultural and farm buildings
❄️ Cold Storage & Refrigeration
- Refrigerated warehouses and distribution centers
- Food processing facilities
- Pharmaceutical storage areas
- Climate-controlled environments
🏭 Specialized Applications
- Clean rooms and laboratory facilities
- Sound studios and acoustic enclosures
- Temporary and modular structures
- Disaster-resistant construction
Technical Specifications
- Panel Thickness: 40mm to 200mm standard range
- Core Density: 38-45 kg/m³ for optimal performance
- Compressive Strength: 150-250 kPa depending on formulation
- Fire Ratings: Up to EI 120 for PIR systems
- Thermal Resistance: R-value 4.5-6.5 per inch
- Service Temperature: -50°C to +120°C continuous operation
Our PIR and PUR systems for sandwich panel manufacturing represent the pinnacle of insulation technology, offering manufacturers the flexibility to choose between premium fire-safe PIR formulations or cost-effective high-performance PUR solutions. With comprehensive technical support and customized formulation options, we enable panel producers to meet diverse market requirements while maintaining the highest standards of quality, performance, and safety in their finished products.
